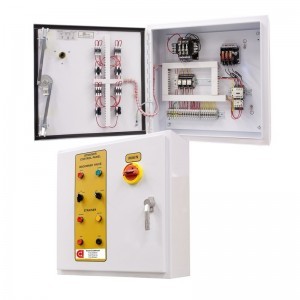

This Self-Cleaning Strainer control panel is an adaptation of our customer’s standard panel to meet a consulting engineer’s specification. It controls a backwash valve and basket strainer motor based on pressure and time.
We redesigned this panel to meet the consulting Engineer’s control panel specification including NEMA 4X 304SS enclosure (Painted White) with a 3 Point Latch and Fused Disconnect. The consulting engineer approved our design without comment. This reduced our customer’s pre-production time and cost.
Click here to see our Medium Manufacturer Success Story
-

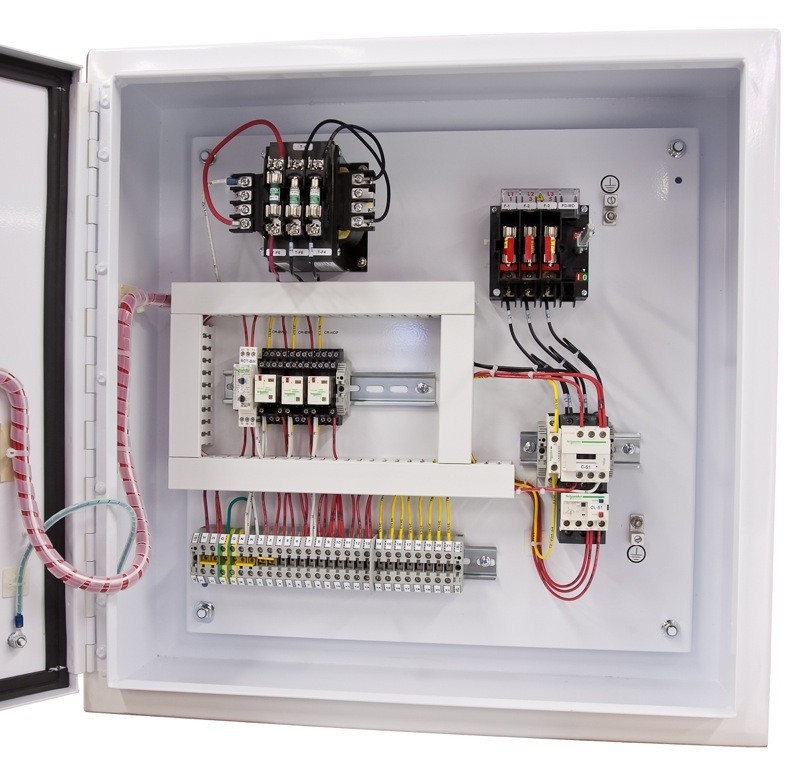

- Rear Panel
-

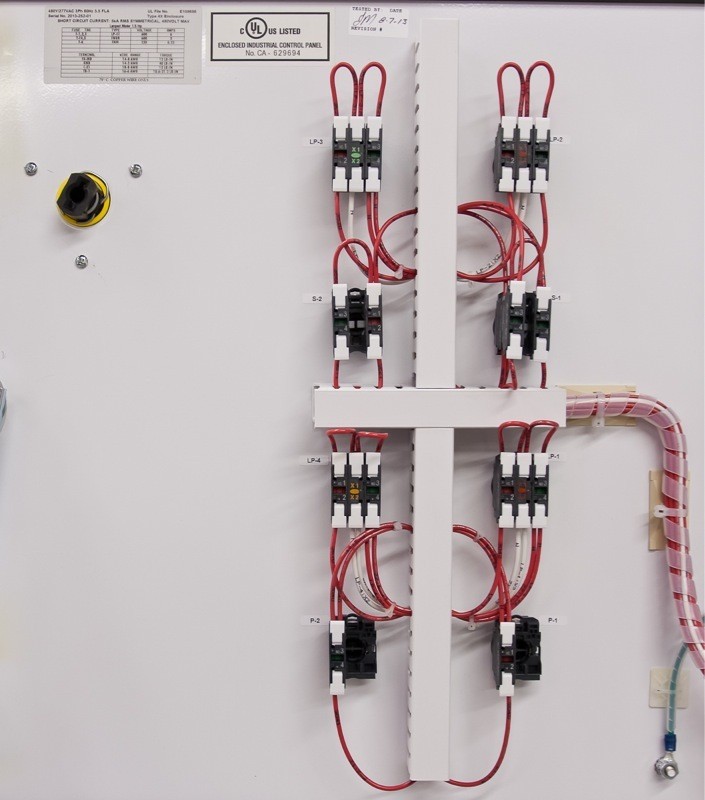

- Door Interior
-

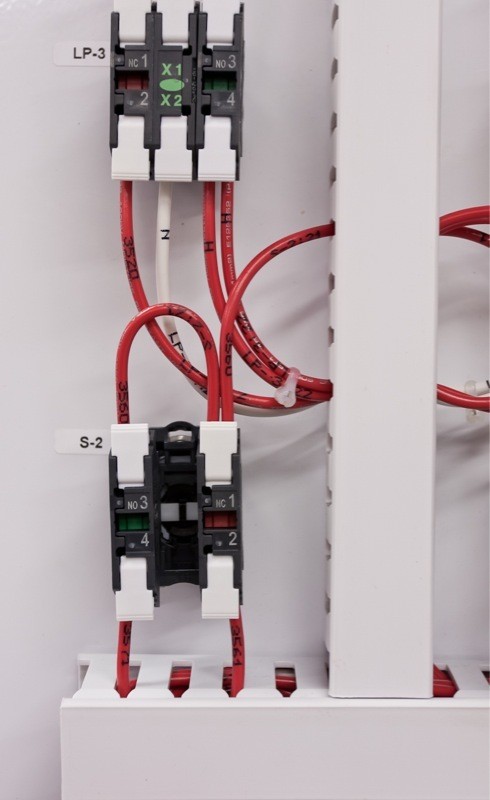

- Pilot Device Wiring
-

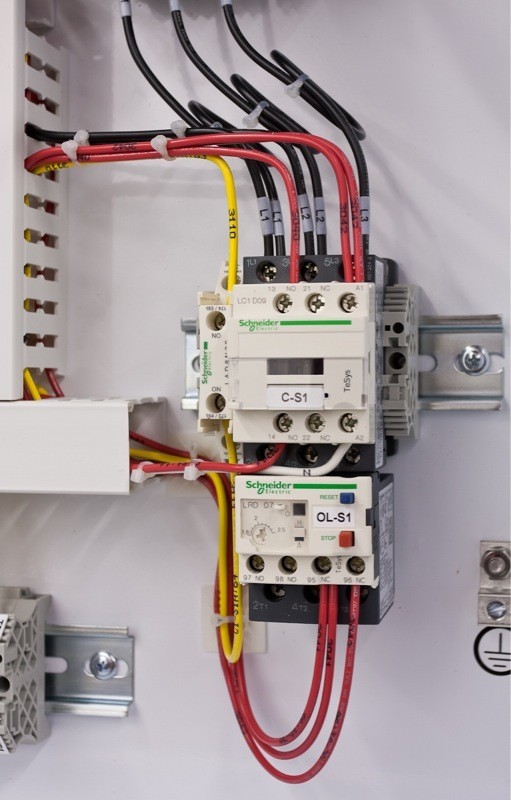

- Contactor Wiring
Engineering Submittal Package
We produce an engineering submittal package for every control panel we’re planning to produce. We submit it to our customer for review and approval prior to release to production. This allows everyone to review what we’re planning to produce and confirm it’s correct. Each includes the following sections.
- Section A. Datasheets for Enclosures and Accessories
- Section B. Datasheets for Power and Control Devices
- Section C. Datasheets for Field Mounted Devices
- Section D. Drawings
- Section E. Bill of Material
Click here to see our Self-Cleaning Strainer Control Panel Submittal
Specification Details
| Specification | Description | Details |
|---|---|---|
| Safety Certification Label | UL508A | |
| Enclosure Type | Wall Mount | |
| Enclosure Material | 304 Stainless | (Painted White) |
| Enclosure Rating | NEMA 4X | |
| Incoming Power Voltage | 480VAC 3 Phase | |
| Incoming Power Connection | Main Circuit Breaker | |
| Incoming Power Disconnect | Main Circuit Breaker | |
| Incoming Power Short Circuit Protection | Main Circuit Breaker | |
| Outgoing Power Loads | 3 HP Motor | |
| Motor Control | FVNR | Across the Line |
| Control Power | 120VAC | |
| Operator Controls | Main Circuit Breaker Strainer Start / Stop Pushbuttons Strainer Run / High DP Lights Valve Hand-Off-Auto Selector Valve Open-Close Selector Valve Open Light Valve Closed Light |
|
| Field Connections | Strainer High Diff Press Switch Valve Actuator Valve Open Switch Valve Closed Switch |
