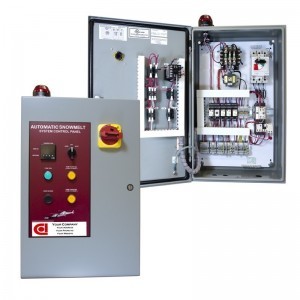

This heat exchanger control panel is designed to mount on an equipment skid. It’s primary function is to control a pump and valve based on an outdoor air temperature switch and a snow sensor.
We redesigned this panel to reduce our customer’s skid production cost. We reduced enclosure size so it can mount on the edge of their equipment skid and provide field cables to connect to their skid mounted devices faster. These changes simplified equipment skid production.
Click here to see our Small Manufacturer Success Story
-

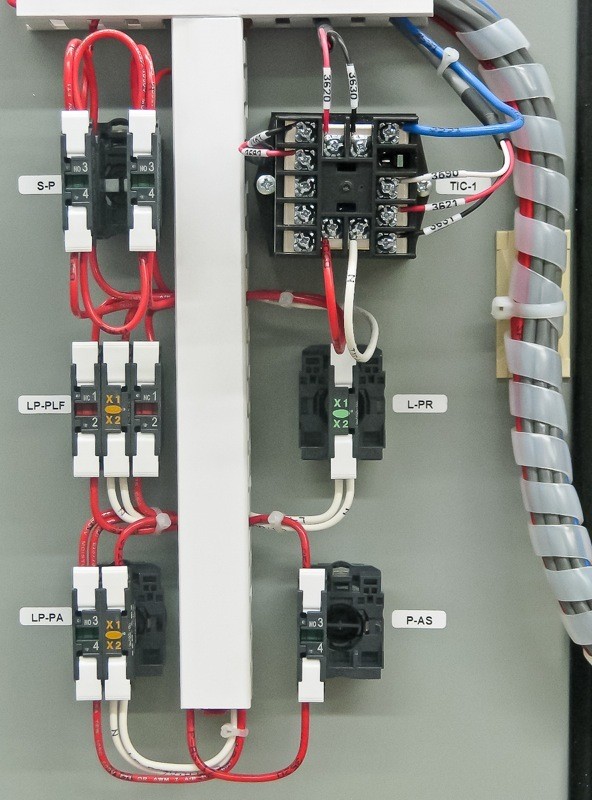

- Front Door Rear
-

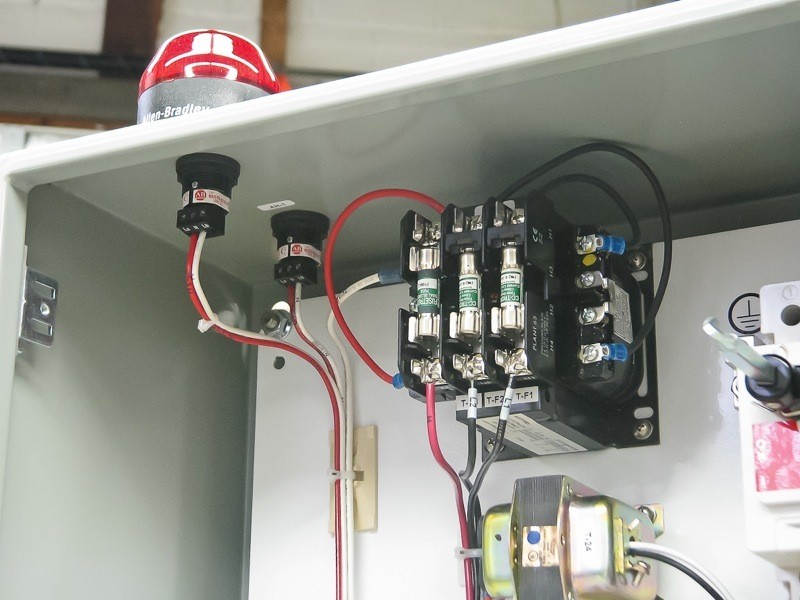

- Alarm Devices
-

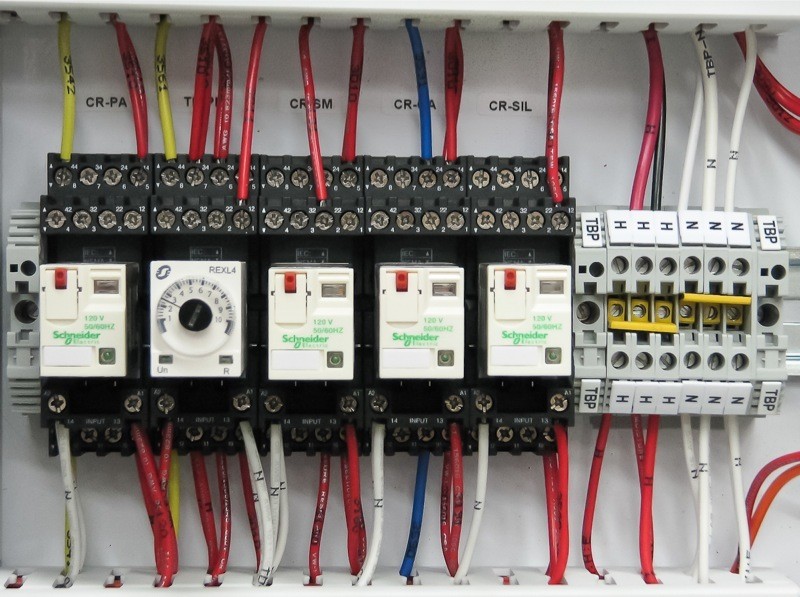

- Relays
-

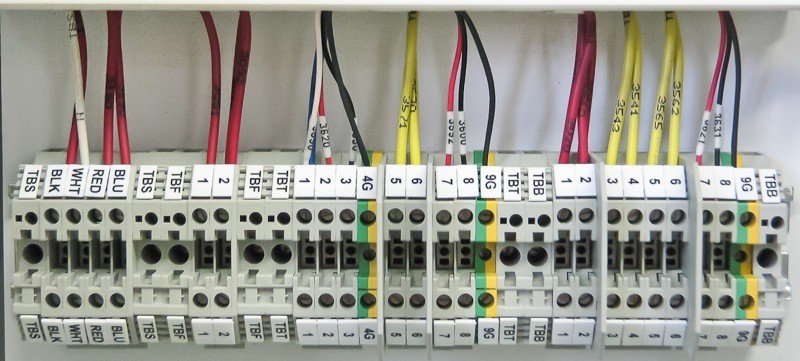

- Field Terminals
Engineering Submittal Package
We produce an engineering submittal package for every control panel we’re planning to produce. We submit to our customer for review and approval prior to releasing it to production. This allows everyone to review what we’re planning to produce and confirm that it’s correct. Each includes the following sections.
- Section A. Datasheets for Enclosures and Accessories
- Section B. Datasheets for Power and Control Devices
- Section C. Datasheets for Field Mounted Devices
- Section D. Drawings
- Section E. Bill of Material
Click here to see our Heat Exchanger Control Panel Submittal
Specification Details
| Specification | Description | Details |
|---|---|---|
| Safety Certification Label | UL508A | |
| Enclosure Type | Wall Mount | |
| Enclosure Material | Steel | |
| Enclosure Rating | NEMA 4 | |
| Incoming Power Voltage | 480VAC 3 Phase | |
| Incoming Power Connection | Main Circuit Breaker | Enclosure Penetration Provided |
| Incoming Power Disconnect | Main Circuit Breaker | Door Operator |
| Incoming Power Short Circuit Protection | Main Circuit Breaker | |
| Outgoing Power Loads | 7.5 HP 3 Phase AC Motor | Enclosure penetration provided |
| Motor Control | FVNR | Across the Line |
| Control Power | 120VAC | |
| Sensor Power | 24VAC | |
| Operator Controls | Main Circuit Breaker Operator Hand-Off-Auto Selector Temperature Controller Run Light Flow Fail Indication (Reset) Overload Indication (Reset) Alarm Strobe Light Alarm Horn Horn Silence |
|
| Field Connections | Temperature Switch Flow Switch Temperature Sensor Valve Actuator SCADA System |
Cables provided for Flow Switch, Temperature Sensor and Valve Actuator.Enclosure penetrations provided. |
